Name: STS The prepaid keypad single phase electricity meter
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18-S
Price: 21.00 USD
Availability: InStock

Zu Hause > produits > Intelligentes frankiertes Strom-Meter >

STS The prepaid keypad single phase electricity meter

prepaid keypad electricity meter

single phase prepaid meter

smart prepaid energy meter

Herkunftsort:

China

Markenname:

STRON SMART

Zertifizierung:

ISO9001 and ISO14001 IEC62053-21/23 and IEC62055-31

Modellnummer:

STE18-S

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Konnektivität:

Intelligentes Messsystem

Eingang:

CIU

Arbeitsspannungsbereich:

70% bis 120% Un

Zahlungsmethode:

Prepaid-Karte

Maximaler Strom:

100a

Eintrittsschutz:

IP54

Standard:

Überziehschutzanlagen-Standard

Stromquelle:

Strom

Abmessungen:

Nicht angegeben

Tokenlänge aufladen:

20 Stellen

Energiekonstante:

(1000imp/kWh)/(400IMP/kWh)

Niedrige Kreditwürdigkeit:

Lagertemperatur:

-20°C bis 70°C

Frequenz:

50Hz

Hervorheben:

prepaid keypad electricity meter

single phase prepaid meter

smart prepaid energy meter

Zahlungs- und Versandbedingungen

Min Bestellmenge

10-100pcs

Preis

$18-24

Verpackung Informationen

Karton

Lieferzeit

5-8 Werktage

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

5000 Prozent pro Monat

Verwandte Produkte

Video

Class 1 Electric Meter Testing Equipment Including Prepaid Token Type Mode for and Accurate Electrical Meter Verification

Beste Preis erhalten

Video

Single Phase Electric Meter Testing Equipment Featuring Prepaid Token Type Mode for Streamlined Calibration and Assurance

Beste Preis erhalten

Video

Class 1 Accuracy Smart Prepaid Electricity Meter Single Phase Energy Metering Solution for Power Management

Beste Preis erhalten

Prepaid Token Typ Elektrometer Prüfgeräte Nennfrequenz 50-60 Hz Konzipiert, um präzise Mess- und Testergebnisse zu liefern

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

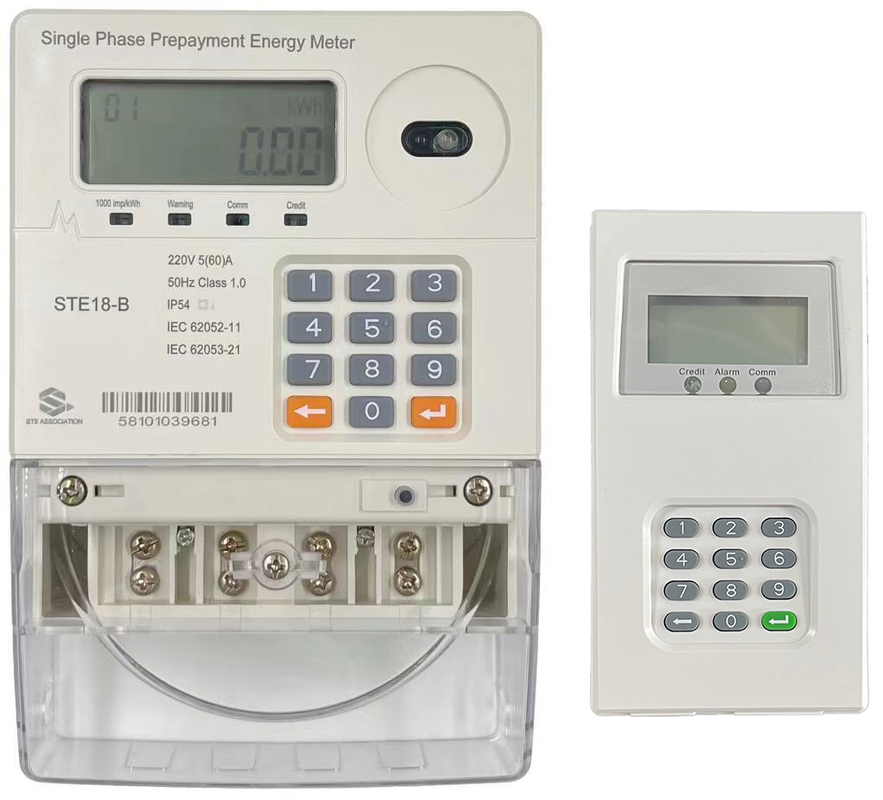

Beschreibung des Produkts

LEDindicators: “1000imp/kWh”:Pulselight,whenthemeterworksnormallyafterbeing connectedtotheload, itshowsbluelight,andevery1000flashesis1kWh. “Warning”:Alarminglight,whenthemeterinthetamperstateorthe balanceiszero, itshowsyellowlight. “Comm”:Signallight,it’sturnedonwhencommunicatewithCIUorDCU successfully.

Dimension:180.2mm×120mm×55.7mm(length×width×height) ·Installation:Suspension Installation.

Remote Communication: The single phase energy meter is STS standard smart meter, which requires users input a 20-digit Token to top up electricity, clear credit, and clear tamper. ·The single phase energy meter supports RF wireless communication, using CIU for meter reading, the distance is about 350m; using DCU for batch meter reading, the distance can reach 1000m. The tokens could be sent into meter by CIU remotely, the Admin also could login AMI system to send tokens to meter by DCU automatically.

Anti-Tamper: When the transparent protective cover is opened, the tamper switch is triggered, the valve will be closed and the "Warning" indicator will show yellow light, This function plays the role of power theft protection.

Parameter settings: There is an infrared interface on the meter, Admin could use this setting special parameters for the meter.

Credit Alarming: The "Warning" indicator flashes red light when the meter credit reaches the threshold, the "Warning" indicator shows yellow light and the“Credit”shows red light when the credit is zero.
