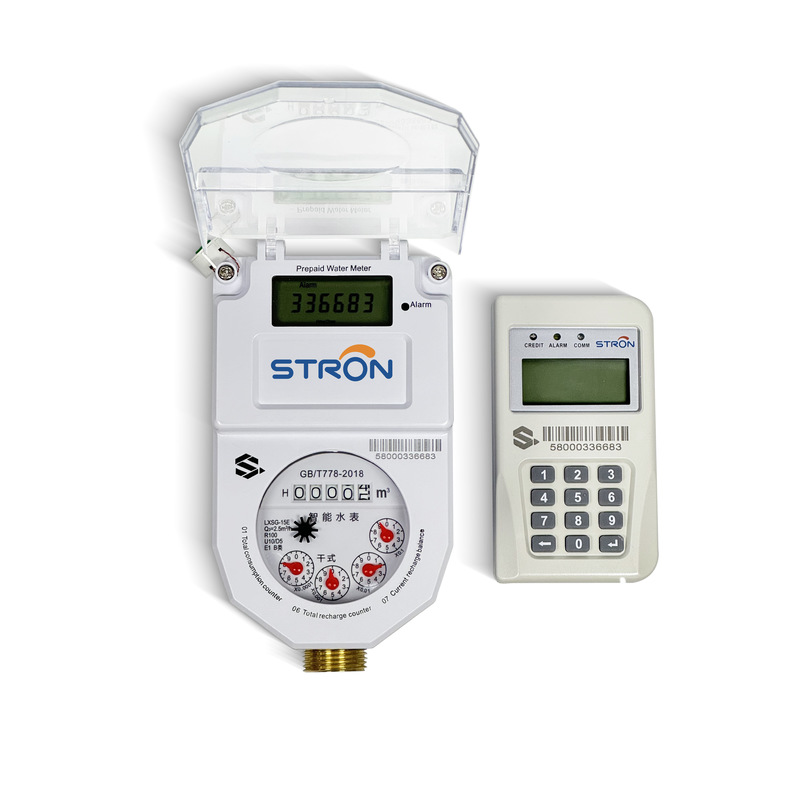

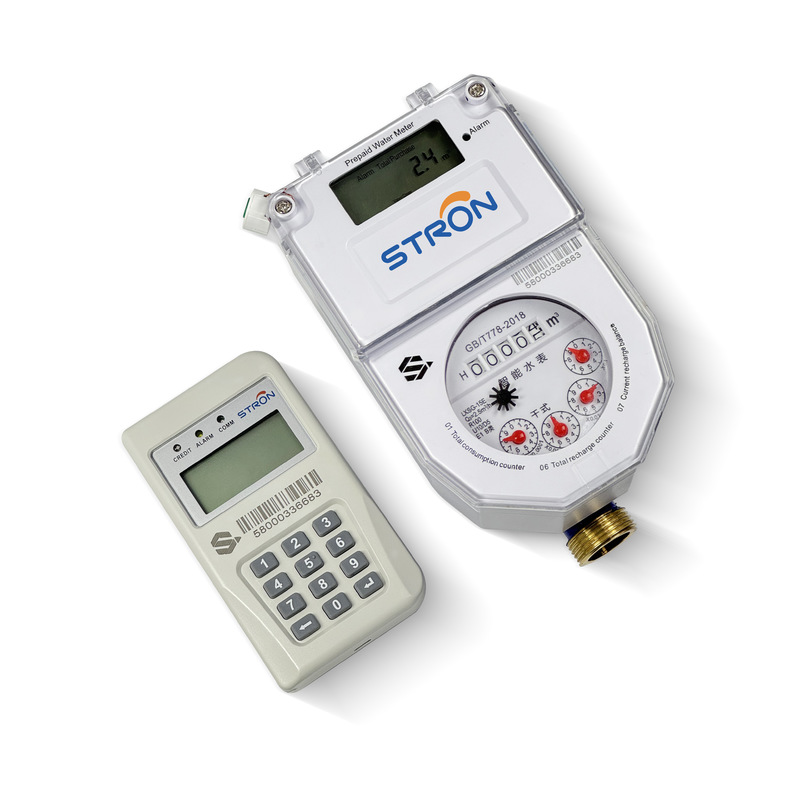

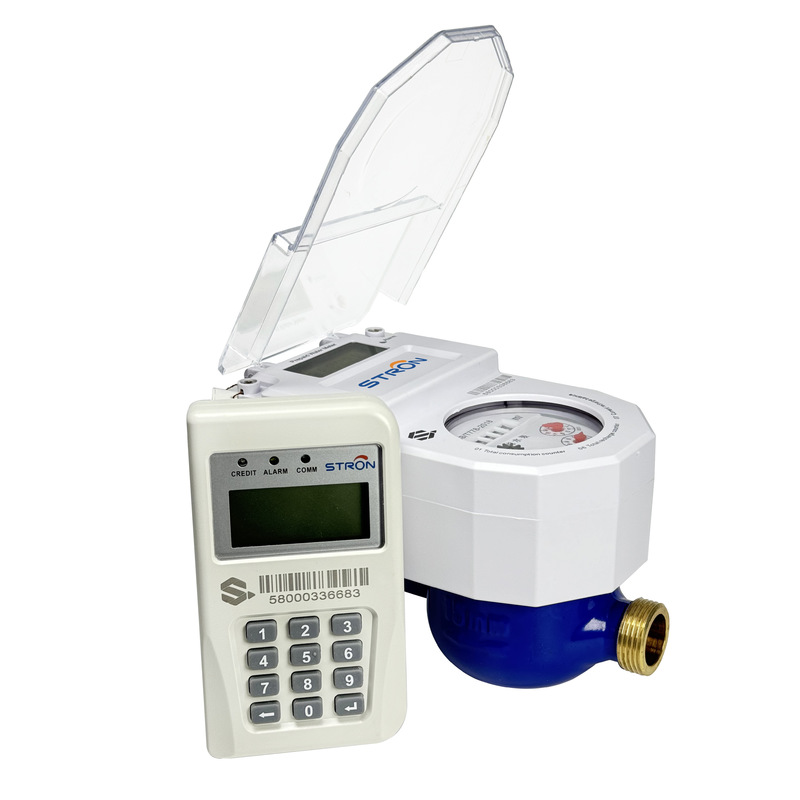

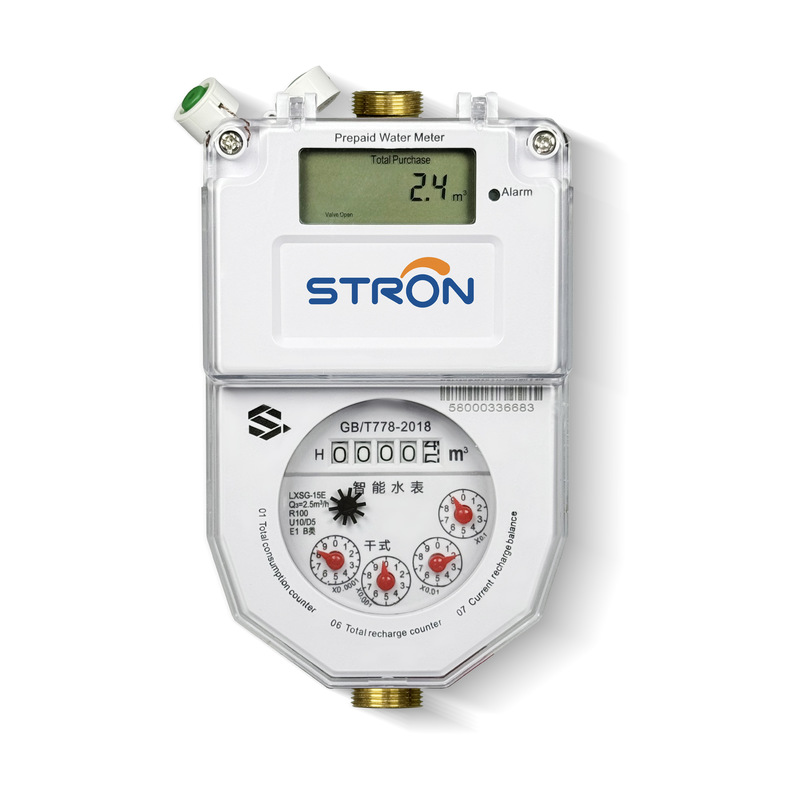

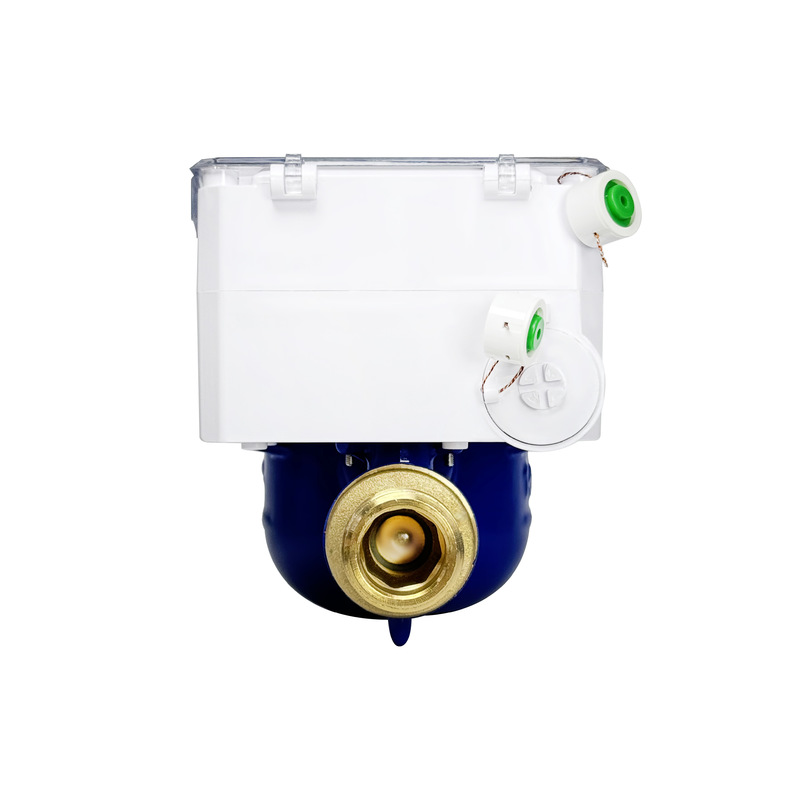

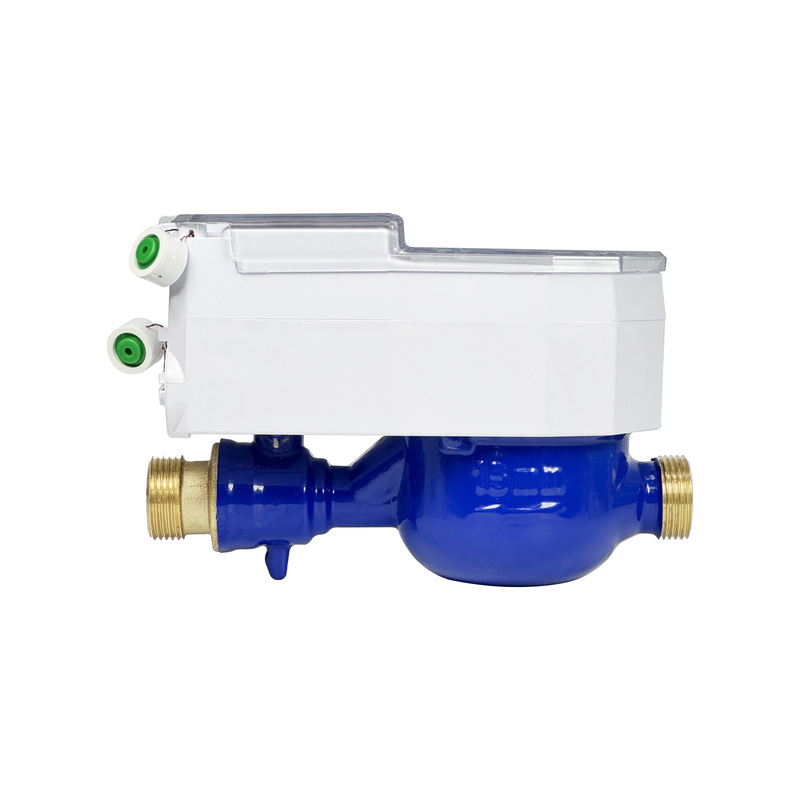

Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life

Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life

16MPA Water Pressure Prepaid Water Meter

8 Years Battery Life Smart Water Meter

Lora Wireless STS Water Meter

Herkunftsort:

Hunan, China

Markenname:

Stron

Zertifizierung:

ISO9001,ISO14001

Modellnummer:

STW36-B

Kontakt mit uns
Bitte um ein Angebot
Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life
Einzelheiten zum Produkt
Schutzklasse:
IP68
Akkulaufzeit:
8 Jahre
Anzeigetyp:
LCD
Wasserdruck:
16mpa
Ladungsmodus:
SchrittPreisstützungen
Anti-Verfasser-Schutz:
Magnetfeldschutz
Druckverlust:
<0,06 MPa
Kommunikationsoptionen:
LORA RF oder Bluetooth 4.0
Maximaler Arbeitsdruck:
16BAR
Maximaler Druckverlust:
00,6 bar
maximale Temperatur:
50℃
Messfehler:
5 % (Q1≦Q≦Q2), 2 % (Q2≦Q≦Q4)
Körpermaterial:
Messing
Nicht-Rücklaufventil:
Enthalten
Durchflussratenverhältnis:
100 (Q3/Q1)
Hervorheben:

16MPA Water Pressure Prepaid Water Meter

,

8 Years Battery Life Smart Water Meter

,

Lora Wireless STS Water Meter

Zahlungs- und Versandbedingungen
Min Bestellmenge
30
Preis
$76-84
Verwandte Produkte
Ein guter Preis. STS Certified Prepaid Integrated Smart Water Meter (Accurate Metering + Remote Control Online Video

STS Certified Prepaid Integrated Smart Water Meter (Accurate Metering + Remote Control

Beste Preis erhalten
Ein guter Preis. STS Prepaid Split Water Meter Brass IP68 LoRa Wireless communication RF Lora Ciu Online Video

STS Prepaid Split Water Meter Brass IP68 LoRa Wireless communication RF Lora Ciu

Beste Preis erhalten
Ein guter Preis. Vorauszahlungswasserzähler Kunststoff IP68 LoRa Wireless Kundenspezifische OEM-Unterstützung Intelligenter Vorauszahlungs-Kaltwasserzähler Multi-Jet LoRa Fernauslesung IP68 6-8 Jahre Batterielebensdauer Lesbar und bequem Online Video

Vorauszahlungswasserzähler Kunststoff IP68 LoRa Wireless Kundenspezifische OEM-Unterstützung Intelligenter Vorauszahlungs-Kaltwasserzähler Multi-Jet LoRa Fernauslesung IP68 6-8 Jahre Batterielebensdauer Lesbar und bequem

Beste Preis erhalten
Ein guter Preis. STS Prepaid Wasserzähler Messing IP68 LoRa Funkfrequenz Lora Ciu Online Video

STS Prepaid Wasserzähler Messing IP68 LoRa Funkfrequenz Lora Ciu

Beste Preis erhalten
Kontakt mit uns
Kontaktieren Sie uns jetzt
Beschreibung des Produkts
Brass Body Lora Wireless Function Multi-jet IP68 STS Prepaid Water Meter
The water meter is STS standard, Token type prepaid meter with high quality IP68 waterproof rating, designed to operate in harsh environments. Its Multi-Jet construction ensures reliable operation even in muddy water without clogging. Features low pressure loss (<0.06Mpa) and maintains accuracy for over 10 years.
Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 0 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 1 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 2
Prepaid Split Keypad Type Brass Water Meter + CIU Specifications
Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode
Non-return valve Non-return valve inside for preventing back-flow
Anti-tamper Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection Non-Revenue gas (Overdraft) can be collected day by day or month by month
Communication The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 3 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 4 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 5 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 6
Metrological Parameters
Size DN15mm 1/2" DN20mm 3/4" DN25mm 1"
Overload flow rate Q4 3.13 5 7.875
Permanent flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.04 0.064 0.1
Minimum flow rate Q1 0.025 0.04 0.063
Ratio "R" Q3/Q1 100 100 100
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Error Q2≦Q≦Q4 2% 2% 2%
Meter Dimensions
Size DN15 1/2" DN20 3/4" DN25 1"
Length(L) 165/190 190 225/260
Width(W) 99 99 103
Height(H) 104 106 114
Connecting Thread G3/4B G1B G1-1/4B
Vending Process
Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 7 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 8
Operation of Vending Software
  1. Login vending system
  2. Meter number registration
  3. Customer information registration
  4. Price Setting
  5. Open Account
  6. Vending/Topping up meters
  7. Get the Token
  8. Input Token to meter with keypad
  9. Recharging successfully
Vending Options
Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 9 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 10
Company Profile
Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 11 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 12 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 13 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 14 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 15 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 16 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 17 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 18 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 19
Hunan Stron Smart Co., Ltd, founded in 2007, is the leading supplier of smart meters in China with 500 employees including 100 technical engineers. We are committed to being the intelligent product service provider and have established long-term cooperation with partners from over 60 countries and regions including South Africa, Nigeria, Tanzania, Kenya, Indonesia, Myanmar, and Cameroon.
Certificates
Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 20 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 21 Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life 22
