STS Standard Three-Phase Meter AMI Smart Meter with Alipay Payment Options Integration Solutions
Product Description
The Smart Prepaid Electricity Meter is an innovative Electric Token Meter designed to provide convenient and efficient energy measurement and payment solutions. With its advanced features and user-friendly interface, this energy meter accurately measures electricity consumption and simplifies payment management.
Key features include a clear digital display showing real-time energy consumption data, precise measurement (1000imp/kWh), and a maximum current capacity of 100 Amps suitable for both residential and commercial applications.
The meter supports multiple mobile payment options including M-PESA, Alipay, MTN, and Airtel, enabling cashless transactions for electricity credits.
Key Features
- Product Name: Smart Prepaid Electricity Meter
- Payment Options: Mobile payment via M-PESA, Alipay, MTN, Airtel, etc.
- Data Storage: Event log and data storage for 10 years
- Operating Temperature: -25℃ to 70℃
- Application: Electricity consumption measurement
- Communication Technology: RF/PLC Module
Technical Parameters
| Parameter |
Specification |
| Standard |
STS standard and protocol |
| Communication with AMI System |
Through data concentrator |
| Measurement Unit |
1000imp/kWh |
| Real-time Clock |
Available |
| Maximum Current |
100 Amps |
| RF Sensitivity |
-121dBm @2kbps |
| Data Storage |
Event log and data can be stored for 10 years |
| Communication Technology |
RF/PLC Module |
| Phase Number |
Single Phase |
| Type |
Electricity Meter |
Product Specifications
Brand Name: Stron
Model Number: STE38-S
Certification: STS
Place of Origin: Hunan
Minimum Order Quantity: 100 units
Supply Ability: 5000 sets per month
Delivery Time: 14 work days
Packaging Details: Carton, 650×405×220mm
Support and Services
Comprehensive technical support includes assistance with installation, setup, troubleshooting, and maintenance. Our team provides guidance on meter registration, credit reloading, usage data interpretation, and software updates.
Packing and Shipping
Each meter is securely packaged with protective materials to prevent damage during transit. Orders are shipped within 1-2 business days via reliable carriers, with tracking information provided for all shipments.
Frequently Asked Questions
Q: What is the brand name of the prepaid electricity meter?
A: The brand name is Stron.
Q: What is the model number of the prepaid electricity meter?
A: The model number is STE38-S.
Q: What is the certification of the prepaid electricity meter?
A: The certification is STS.
Q: Where is the prepaid electricity meter manufactured?
A: The product is manufactured in Hunan.
Q: What are the available payment terms?
A: Payment terms include L/C, D/A, D/P, T/T, Western Union, MoneyGram.

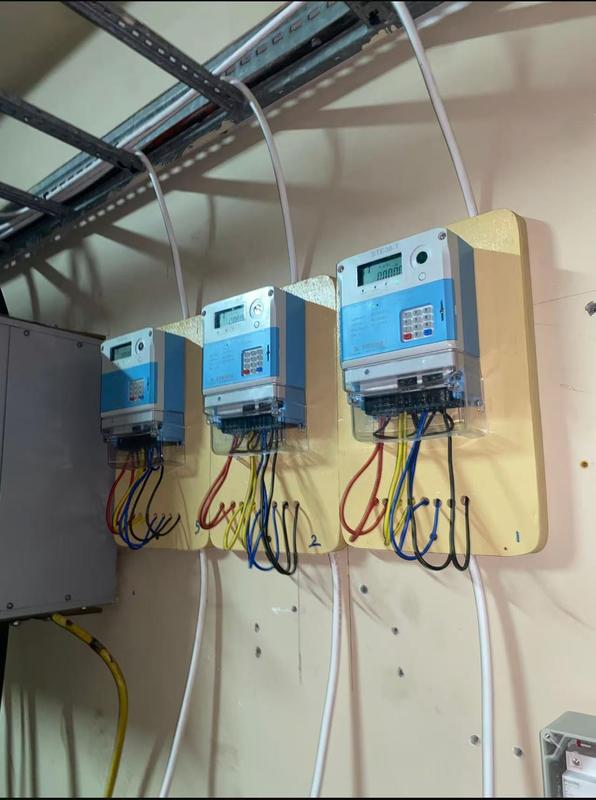

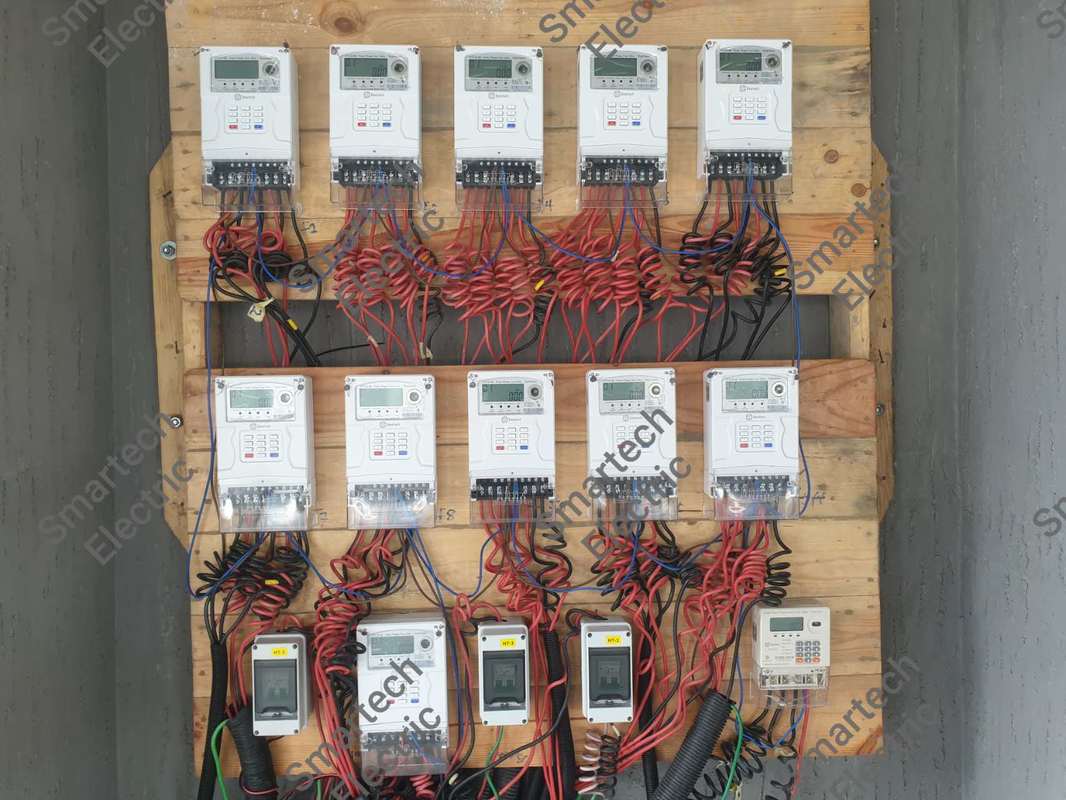

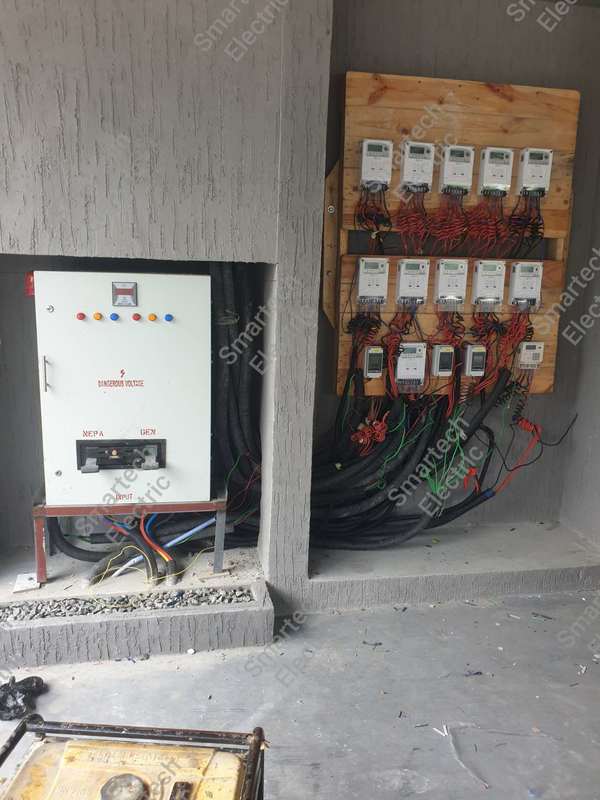

Product Images
